Marco Tech is a Norwegian & French company created in 1997 in Norway and then moved its offices in 2004 in the South West of France close to Bordeaux.
Its leading team is working in the field of petroleum equipment since 1970.
Marco Tech & Niehüser have strengthened their cooperation to offer the French market all the advantages of the Niehüser product range and the expertise of Marco Tech.
MANHOLE COVERS
Manhole covers with optional emergency pressure relief valve (exists also with SPD-system), welded-in flanges for manhole covers, vent valves with or without sequential control, flame arrestors.
-
EN13314, EN13317, EN14596, EN13094
-
DN 500
-
PN16
-
overpressure prevention at 0,3 Bars
SENSOR & TESTER
Optical 5-wire level sensors, electronic and pneumatic level sensors, in accordance with :
-
Suivant : TÜV 01 ATEX 1677, TÜV 02 ATEX 1958, TÜV 03 ATEX 2241, TÜV 05 ATEX 2707, EN13922
-
Pneumatic high level sensors with test function, low level sensor for aircraft refuelling.
-
5-Wire otical sensor certified EN13922
-
Combined pneumatic for autonomous use to close the bottom valve or any otehr penutic device and optical sensors for bottom loading at depots
BOTTOM VALVES
Bottom valves DN100, pneumatically actuated, in accordance with :
-
EN13308, EN13316
-
DN80 / 100 / 125 /150
-
PN16 / 10
-
Overpressure prevention at 15 bars
-
Very flat version for 1st compartment in semi trailers
-
Tee version for double direction (in/out for ex.)
-
Round TW flanges
-
Square flanges
Different housing are available, optional with SPD-system, sequence control, manual emergency opening.
VALVES
Straight line valves with square or TW-flange, optional with SPD-system :
-
DN80 ou DN100
API-adapter and closing cap for API-adapter, in accordance with :
-
EN13
-
Optional with SPD-system, hand lever, pneumatically actuated.

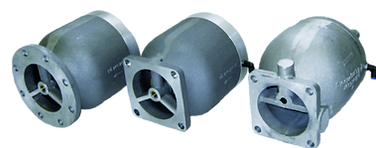

excentric butterfly valve with hand lever or single-acting pneumatic drive :
-
DN 100
HOSE REEL
We supply hose reels which structure is made out of aluminium in different designs and sizes.
Aluminium provides a metal that will not rust in time, in addition to being a light and strong material for a vehicle. Weight is critical for a vehicle in general and even more when we talk about petrol as it gives you the total volume you will be able to transport. And because aluminium is more flexible than steel it also allows to absorb some of the vibrations and shocks the vehicles get from the sometimes difficult road conditions.
They are pneumatically or hydraulically driven or alternatively with a chain wheel or for depots with an ATEX electrical motor.
They are used in all types of oil and liquid gas petroleum (LPG) road tankers, aircraft refuelling, fire engines, stationary installations and for the delivery of AdBlue/ urea or other more aggressive products (with a stainless steel swivel joint:
-
Motor: hydraulic and pneumatic solutions are integrated and protected in the drum of the hose reel (electrical solution is outside)
-
Swivel joint: DN40 up to DN80
-
Operating pressure: depends on the type up to 40 bar
-
Width: (x) from 66mm up to 1600mm
-
Side plate or spoked side plate: (y) diameter from 430mm up to 2200mm
-
Drum plate diameter (z) from 270mm up to 600mm
-
Optional with locking device, brake
